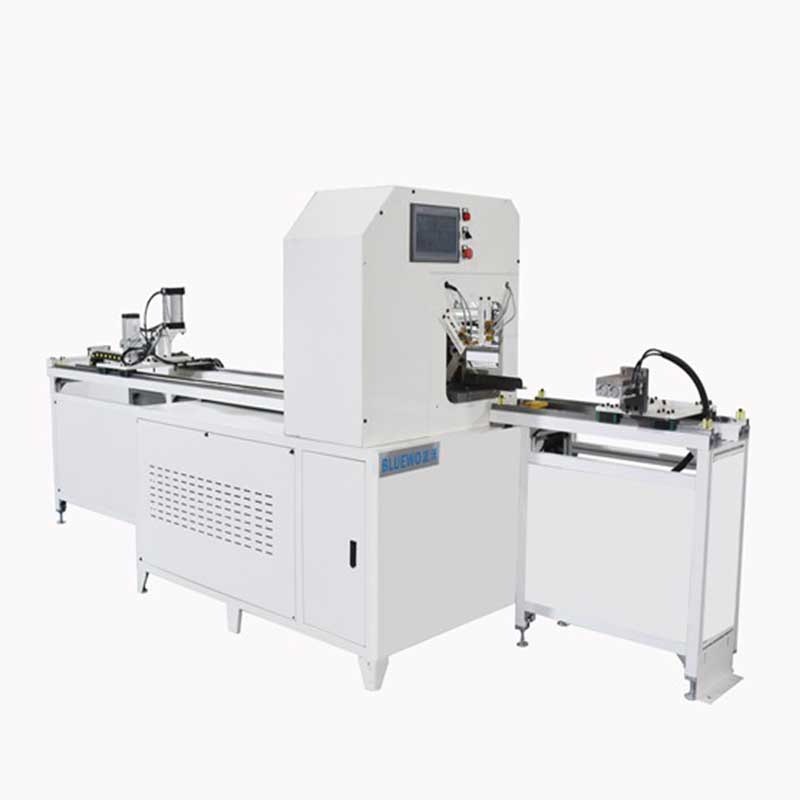

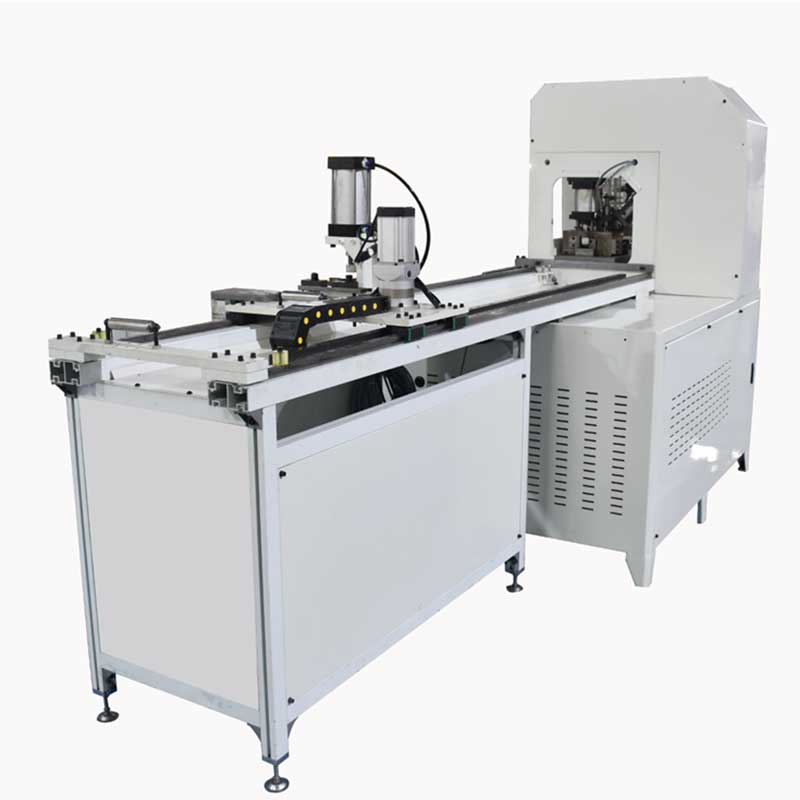

Angle steel hydraulic punching machine
Angle steel hydraulic automatic punching machine is a special equipment for the metal processing and manufacturing industry. Its purpose is to accurately and quickly punch angle steel profiles, which are often used in steel bridge construction, steel tower fabrication, and transmission line installation.
The machine is equipped with a hydraulic press that uses high pressure to punch holes or grooves in angle steel profiles. With the help of die-cutting and punching, the angle steel profiles can be easily formed and cut to the required size. The machine is operated by an operator who enters the required parameters and settings via the control panel.
Versatile and can handle angles of various sizes and thicknesses. They are easy to use, efficient, and can handle high-volume production. Additionally, the machine includes safety features such as emergency stop buttons and guards to ensure worker safety. The pipe feeding system is used to hold the metal pipe securely in place while it is being punched. Depending on the specific model of the machine, the pipe feeding system may be fully automated or require manual intervention.
The hydraulic system provides the necessary force to punch holes in the metal pipe. The punching tool is typically made of hardened steel and is designed to create clean, precise holes or slots in the metal pipe.
The angle steel punching machine plays a vital role in the metal processing and manufacturing industry. The precision, efficiency, and speed with which it punches and cuts angle steel profiles make it the best choice for industrial applications requiring top-notch output.
Advantages of Angle steel hydraulic punching machine
1. High Precision: The hydraulic punching machine can punch holes in angle steel with high accuracy, ensuring that the holes are perfectly aligned and the required dimensions are achieved.
2. Efficient and Productive: The use of hydraulic power and automation makes the punching process faster, more efficient, and more productive, thereby reducing the production time and increasing the overall output.
3. Versatile: The punching machine can be used for a variety of punching applications, such as making holes, notches, or slots in angle steel, making it a versatile machine that can cater to different requirements.
4. Easy to Use: The hydraulic punching machine is easy to operate and requires minimal training or skill, making it accessible to new users.
5. Enhanced Safety: The machine uses hydraulic power to punch the holes, reducing the risk of operator injury, and ensuring that the operation is safe.
6. Durable: The punching machine is made of high-quality materials and is designed to withstand rigorous use, making it a durable machine that can last for years.
7. Cost-effective: The hydraulic punching machine is a cost-effective solution that offers high-value performance, reducing costs and maximizing profits.
Metal hydraulic punching machine feature
This metal pipe automatic hydraulic punching machine is available for PLC system, numerical control with LED touchscreen. Reasonable design punch and dies sets, use high-quality die steel.
Gantry milling processes the machine punching molds base to ensure high precision performance. Powerful hydraulic unit with the forced cooling system
1. Reasonable designing punch and dies set to prevent scratch on dies, auto wiping system removes metal filings.
2. Free customization: Tell us your product requirements, and we can customize efficient and affordable solutions according to your requirements.
3. High precision. Gantry milling processes the machine punching molds base to ensure high precision performance.
4. High-quality guides rail and transmits gear.
5. Available for the different distances of hole punching, by setting on the touchscreen. Automatic numerical control for saving manpower.
6. Hydraulic-driven, step-less pressure regulation.
7. Mode selection: Auto/Manual.
8. PLC control, time setting, and pressure adjusting.
9. Touchscreen, visible digital display, full processes monitoring.
10. Automatically detect malfunctions, visible alarm list, and alarm reset.
Angle steel hydraulic automatic punching machineCNC Metal Hydraulic Punching Machine Parameters
CE Certificate: YES
Control: CNC Automatic
Capacity: 45 Holes/min
Max. material thickness: 10mm (the thickness can be increased according to customer needs)
Max. material length: 6000mm (the length can be increased according to customer needs)
Driven power: Hydraulic
Whole Machine Max. Hydraulic Press: Customized according to product requirements
Motor Power: 7.5 Kw/11Kw/18.5Kw
Voltage: 380-440V 4 Phases 50Hz（Customized）
Dimensions: 6800x1000x1700mm(As per requirement)
Net weight: About 2000 Kg

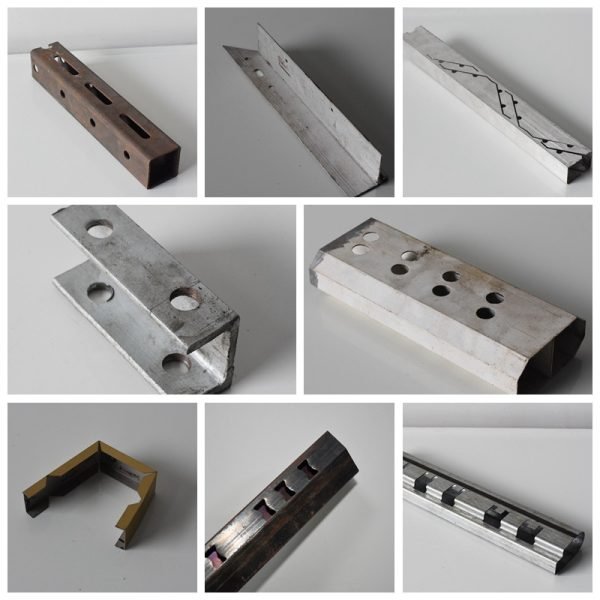

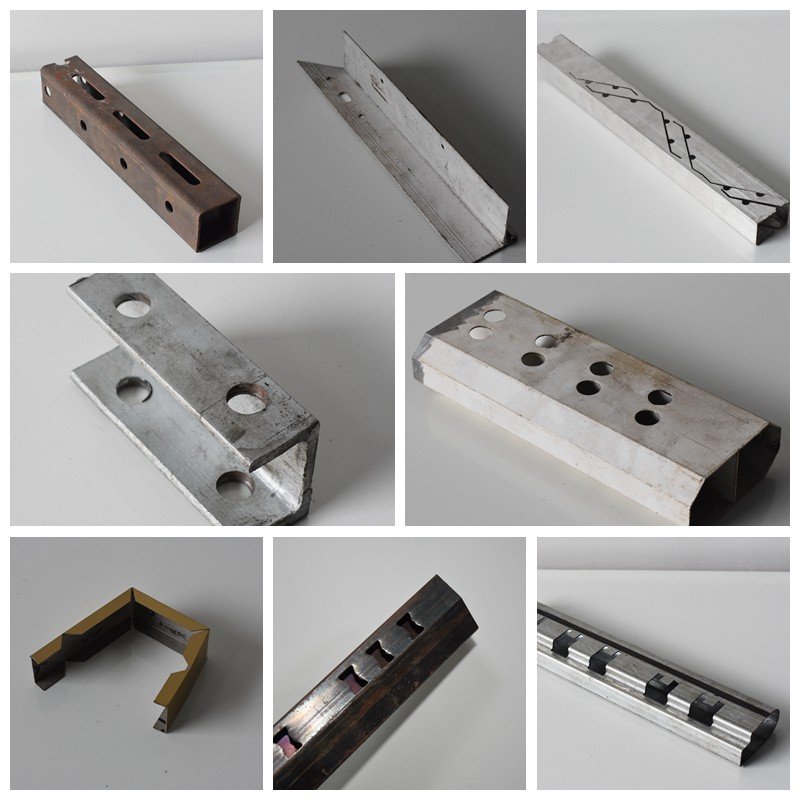

Available materials: round pipe, square pipe, stainless steel pipe, carbon steel pipe, iron pipe, aluminum profile, Angle steel, etc.
Angle steel hydraulic punching machine price
The price of an automatic hydraulic punching machine can vary depending on several factors, such as the manufacturer, model, features, and location. Generally, these machines can range from a few thousand dollars to tens of thousands of dollars.
For example, a basic hydraulic punching machine with a lower tonnage capacity and fewer features can cost about $5,000. On the other hand, a high-end hydraulic punching machine with a larger tonnage capacity and advanced features such as CNC control can cost up to $13000 or more.
It is important to note that the price of the machine is just one factor to consider when purchasing. Other factors to consider include the machine’s capabilities, quality, durability, warranty, and customer support. It’s also important to ensure that the machine you choose meets your specific requirements and production needs.
Precautions for using an Angle steel hydraulic punching machine
1. The drive or commissioning must be prohibited without the protective cover on the drive parts exposed to the press.
2. Before you start driving, ensure the primary fastening screws are secure, the mold is intact, and the operating mechanism, the automated braking system, the clutch, the brakes, and the lubrication system are all in good working order.
3. Installing the mold requires that the slider is at the bottom dead center, that the closed height is accurate, that the economic load is avoided, that the mold is tight and dependable, and that it passes the pressure test.
4. It is forbidden to put your hands, tools, or other objects in a dangerous area while working.
5. Special tools are required to operate small parts. Only use the tool to remove the blank from the mold when it is stuck.
6. Stop feeding immediately and check the source if you hear or see anything unusual. If the rotating components come loose, the steering mechanism breaks, the mold comes loose, or there are other flaws, the machine should be stopped and fixed.
7. To avoid misuse, the hands or feet must permanently be removed after completing a task.
8. Before leaving for the day, turn off the power, take care of the essential cleaning, and take down the desk
If you have an idea to get a free quotation for a CNC metal tube cutting machine, please answer the questions as follows and tell us by email, so that we can recommend the most suitable CNC machine and quota the affordable price to you directly.
1. Provide the pipe material you need to process, preferably describe the purpose of your processing and the standards required for the product.
2. If need to cut tubes, What is your tube length, diameter, and thickness?
3. Provide the shape of the hole to be punched, the size of the hole, and the distance of the hole.?
4. What is the local voltage, that can ensure the normal operation of the machine?
5. Which seaport is the nearest to you?
6. Do you have any experience in Die punching?
7. What is your online chat way? Such as Skype and Whatsapp.
8. Are you an end user or reseller?
