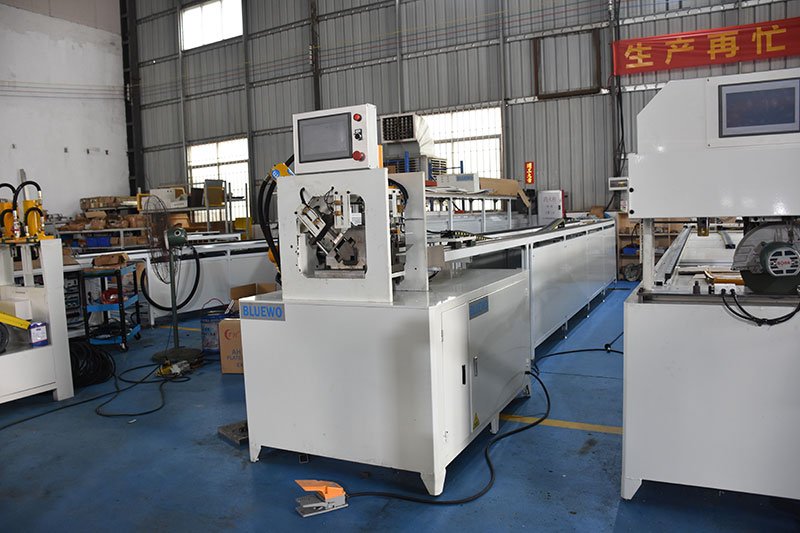

Metal pipe automatic hydraulic punching machine
A metal pipe automatic hydraulic punching machine is a type of industrial equipment that is used to punch holes or slots in metal pipes using hydraulic pressure. The machine consists of a hydraulic system, a punching tool, and a pipe feeding system.
The hydraulic system provides the necessary force to punch holes in the metal pipe. The punching tool is typically made of hardened steel and is designed to create clean, precise holes or slots in the metal pipe.
The pipe feeding system is used to hold the metal pipe securely in place while it is being punched. Depending on the specific model of the machine, the pipe feeding system may be fully automated or require manual intervention.
Metal pipe automatic hydraulic punching machines are commonly used in a variety of industries, including construction, automotive manufacturing, metal furniture, and metal fabrication. They can be used to create holes and slots in metal pipes of various shapes and sizes, making them versatile and valuable tools for many industrial applications.
Advantages of metal pipe automatic hydraulic punching machine
1. Increased efficiency: Hydraulic punching machines can perform repetitive tasks faster than humans and with greater precision, resulting in increased productivity and efficiency.
2. Reduced labor costs: With the use of a hydraulic punching machine, there is no need for manual labor, resulting in reduced labor costs.
3. Consistent quality: Hydraulic punching machines can produce consistent and accurate results every time, ensuring high-quality products and reducing waste.
4. Increased safety: Hydraulic punching machines are designed with safety features that protect workers from accidents and injuries.
5. Versatility: Hydraulic punching machines can be used on a variety of materials and sizes, making them versatile and useful in a range of industries.
6. Reduced maintenance: The use of hydraulic technology reduces the need for regular maintenance, making these machines more cost-effective in the long run.
7. Automation: With automatic feeding and punching, these machines can be operated with minimal human intervention, allowing for increased production rates and reduced labor costs.
Metal pipe automatic hydraulic punching machine feature
This metal pipe automatic hydraulic punching machine is available for PLC system, numerical control with LED touchscreen. Reasonable design punch and dies sets, use high-quality die steel.
Gantry milling processes the machine punching molds base to ensure high precision performance. Powerful hydraulic unit with the forced cooling system
1. Reasonable designing punch and dies set to prevent scratch on dies, auto wiping system removes metal filings.
2. Adopt the design of three cylinders, two cylinders are responsible for cutting pipe corners, and one cylinder is responsible for punching. Cut-off and other functions can be added as required.
3. High precision. Gantry milling processes the machine punching molds base to ensure high precision performance.
4. High-quality guides rail and transmits gear.
5. Available for the different distances of hole punching, by setting on the touchscreen. Automatic numerical control for saving manpower.
6. Hydraulic-driven, step-less pressure regulation.
7. Mode selection: Auto/Manual.
8. PLC control, time setting, and pressure adjusting.
9. Touchscreen, visible digital display, full processes monitoring.
10. Automatically detect malfunctions, visible alarm list, and alarm reset.
CNC Metal Pipe Hydraulic Punching Machine Parameters
CE Certificate: YES
Control: CNC Automatic
Capacity: 45 Holes/min
Max. material thickness: 10mm (the thickness can be increased according to customer needs)
Max. material length: 6000mm (the length can be increased according to customer needs)
Driven power: Hydraulic
Whole Machine Max. Hydraulic Press: Customized according to product requirements
Motor Power: 7.5 Kw/11Kw/18.5Kw
Voltage: 380-440V 4 Phases 50Hz（Customized）
Dimensions: 6800x1000x1700mm(As per requirement)
Net weight: About 2000 Kg
Available materials: round pipe, square pipe, stainless steel pipe, carbon steel pipe, iron pipe, aluminum profile, etc.
CNC Hydraulic punching machine price
The price of an automatic hydraulic punching machine can vary depending on several factors, such as the manufacturer, model, features, and location. Generally, these machines can range from a few thousand dollars to tens of thousands of dollars.
For example, a basic hydraulic punching machine with a lower tonnage capacity and fewer features can cost about $5,000. On the other hand, a high-end hydraulic punching machine with a larger tonnage capacity and advanced features such as CNC control can cost up to $13000 or more.
It is important to note that the price of the machine is just one factor to consider when purchasing. Other factors to consider include the machine’s capabilities, quality, durability, warranty, and customer support. It’s also important to ensure that the machine you choose meets your specific requirements and production needs.
Precautions for using hydraulic punching machine
1. The drive or commissioning must be prohibited without the protective cover on the drive parts exposed to the press.
2. Before you start driving, ensure the primary fastening screws are secure, the mold is intact, and the operating mechanism, the automated braking system, the clutch, the brakes, and the lubrication system are all in good working order.
3. Installing the mold requires that the slider is at the bottom dead center, that the closed height is accurate, that the economic load is avoided, that the mold is tight and dependable, and that it passes the pressure test.
4. It is forbidden to put your hands, tools, or other objects in a dangerous area while working.
5. Special tools are required to operate small parts. Only use the tool to remove the blank from the mold when it is stuck.
6. Stop feeding immediately and check the source if you hear or see anything unusual. If the rotating components come loose, the steering mechanism breaks, the mold comes loose, or there are other flaws, the machine should be stopped and fixed.
7. To avoid misuse, the hands or feet must permanently be removed after completing a task.
8. Before leaving for the day, turn off the power, take care of the essential cleaning, and take down the desk
If you have an idea to get a free quotation for a CNC metal tube cutting machine, please answer the questions as follows and tell us by email, so that we can recommend the most suitable cnc machine and quota the affordable price to you directly.
1. Provide the pipe material you need to process, preferably describe the purpose of your processing and the standards required for the product.
2. If need to cut tubes, What is your tube length, diameter, and thickness?
3. Provide the shape of the hole to be punched, the size of the hole, and the distance of the hole.?
4. What is the local voltage, that can ensure the normal operation of the machine?
5. Which seaport is the nearest to you?
6. Do you have any experience in Die punching?
7. What is your online chat way? Such as Skype and Whatsapp.
8. Are you an end user or reseller?
