Sheet metal forming machine/ Semi-automatic hydraulic punching machine

Sheet metal forming machine/ Semi-automatic hydraulic punching machine

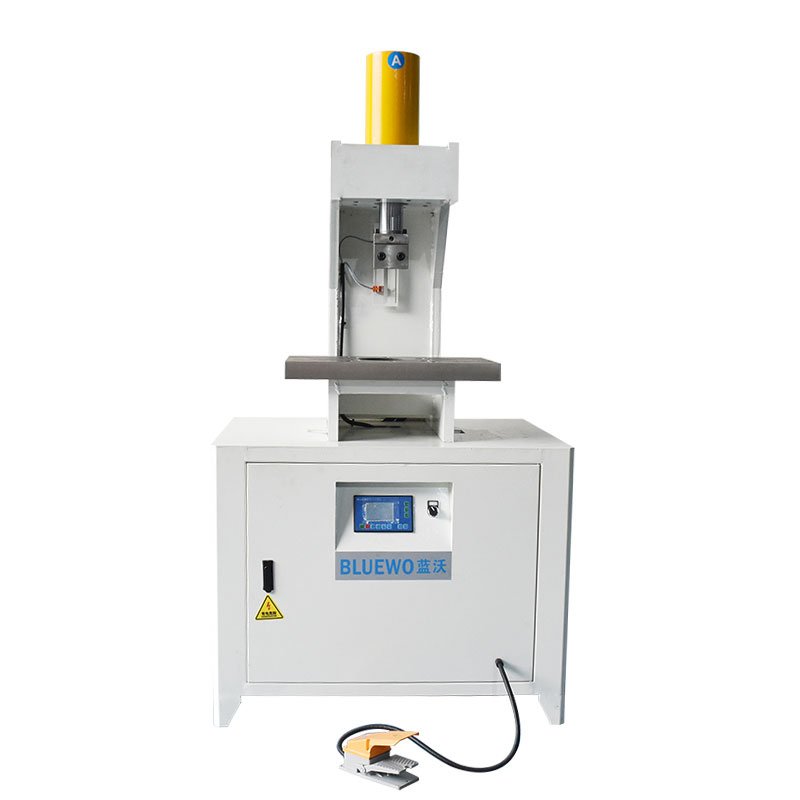

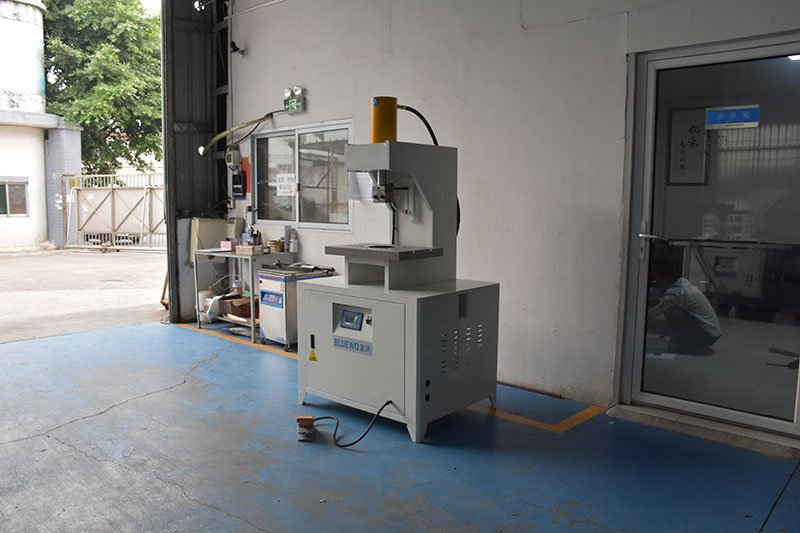

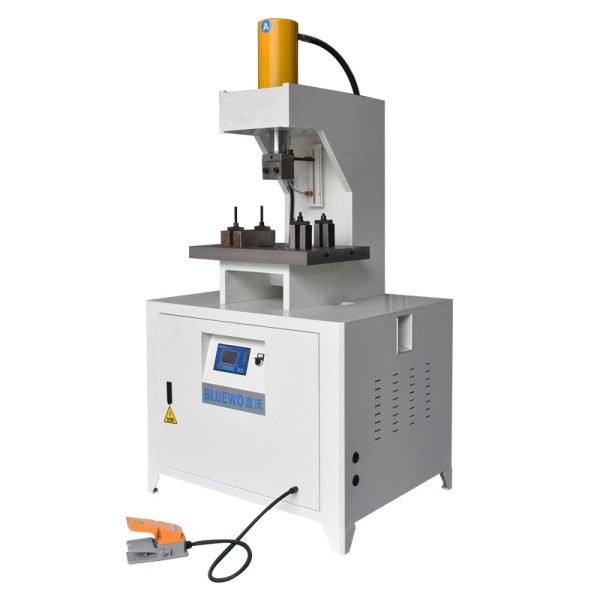

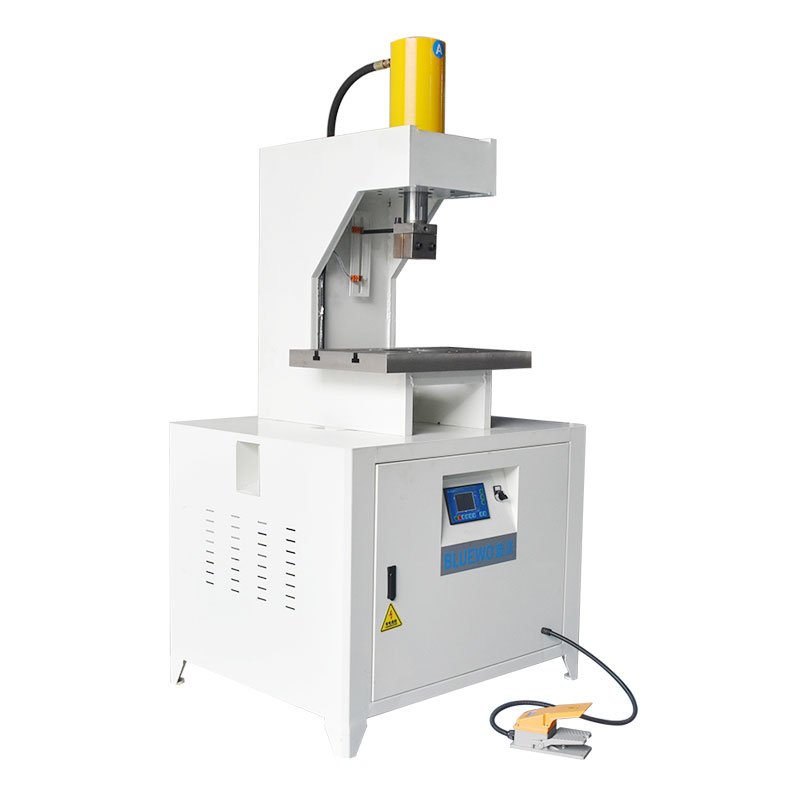

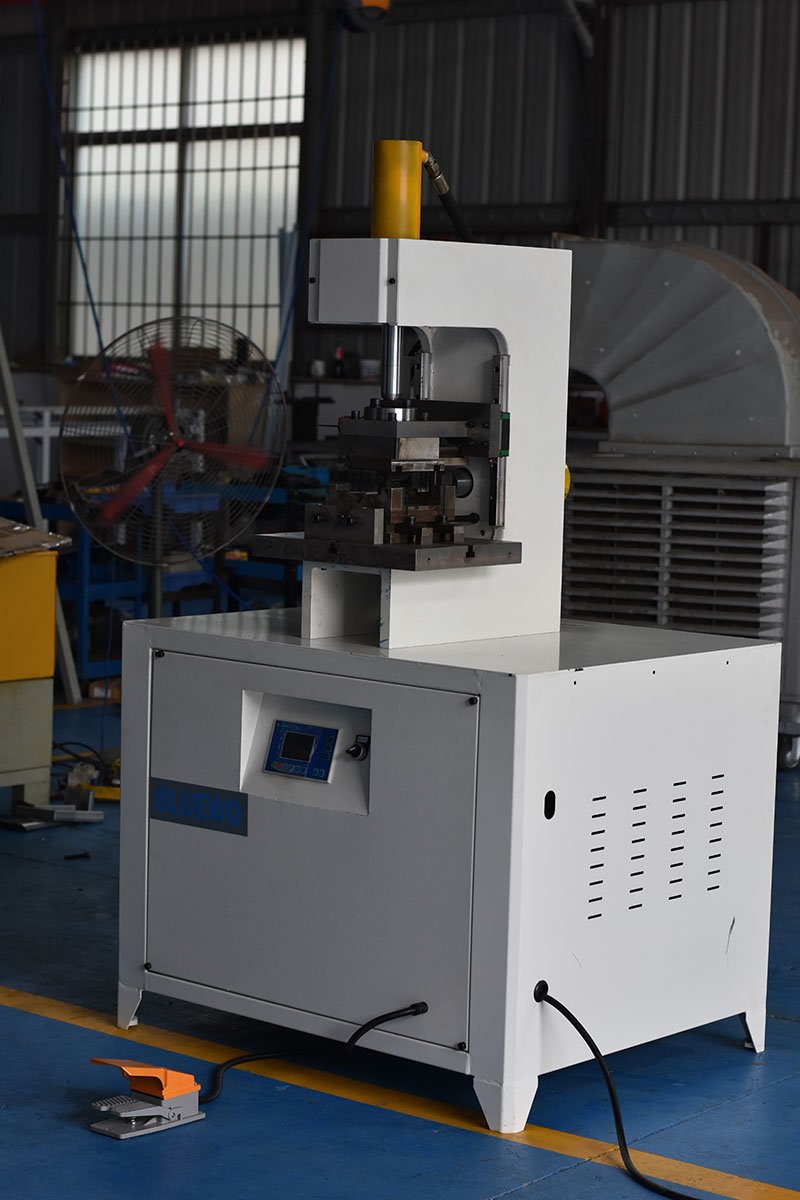

A semi-automatic hydraulic punching machine is a type of machine that uses hydraulic power to punch holes or shapes in metal or other materials. It is called semi-automatic because some parts of the operation are automated, while others require manual intervention.

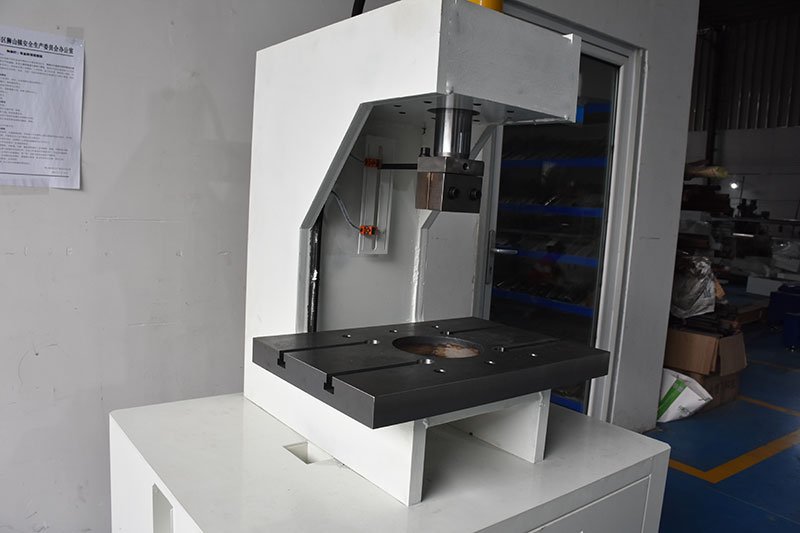

The machine typically consists of a hydraulic power unit, a punching head, a work table, and a control system. The operator places the workpiece on the table and positions it according to the desired hole or shape. The punching head, which contains the punch and dies, is then positioned over the workpiece.

Semi-automatic hydraulic punching machines are commonly used in industries such as sheet metal fabrication, automotive manufacturing, and construction. They are preferred for their speed, precision, and ease of use, compared to manual punching methods. Changing different dies can realize pipe hole punching, pipe end notching, pipe end pressing, hydraulic cutting, and other functions. This model is a relatively economical solution. The operator manually inserts the pipe into the mold, depresses the footswitch, and the machine will complete a working cycle. The operator can replace the mold according to the actual production needs and truly realize the functions of punching, end notching, pipe end pressing, hydraulic cutting, etc.

Semi-automatic hydraulic punching machine Applications

1. This notching machine is workable for notching aluminum ladders profiles, steel guardrails, zinc steel fences, iron guard fences, aluminum alloy shelf brackets, handrails, balustrades, railing, and banisters.
2. Available for different materials, including aluminum profile, stainless steel tube, mild steel pipes, iron pipes, copper tube, etc.
3. Available for various shapes of hole punching, including square hole, rectangular hole, D shape hole, triangular hole, oval hole, waist circular hole, prismatic hole, etc.

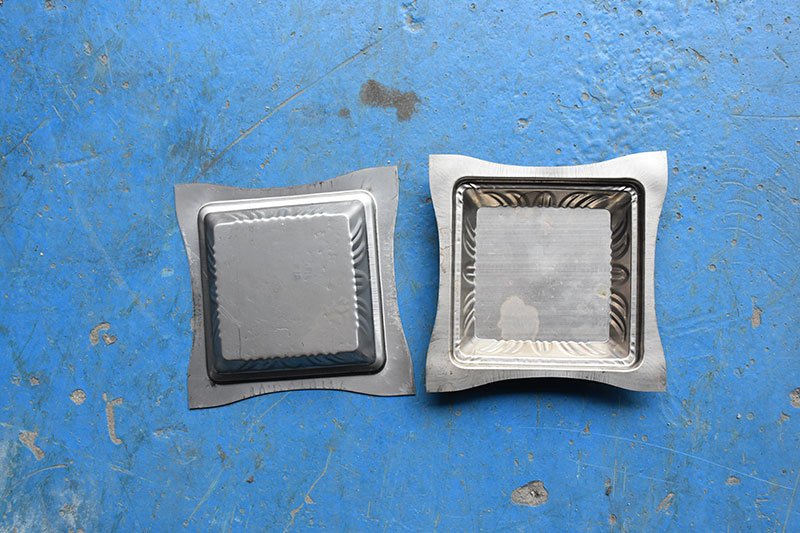

The semi-automatic hydraulic punching machine for sheet metal forming requires the product to be beautiful, and the pressing speed should not be too fast. If it has other uses, it can be customized according to your requirements.

Advantages of semi-automatic hydraulic punching machine

1. Increased Efficiency: A semi-automatic hydraulic punching machine can punch holes in materials quickly and efficiently. This can increase the productivity of a manufacturing process and reduce the time it takes to produce finished products.

2. Improved Accuracy: Hydraulic punching machines use hydraulic power to drive the punch, resulting in a more accurate punch than manual punching machines. This can result in fewer errors and less scrap material, which can save time and money.

3. Versatility: Semi-automatic hydraulic punching machines can be used to punch holes in a wide range of materials, including metal, plastic, and rubber. This versatility makes them useful in a variety of industries, including construction, automotive, and manufacturing.

4. Increased Safety: Hydraulic punching machines are generally safer to use than manual punching machines. This is because they require less manual force to operate, which reduces the risk of injury to the operator.

5. Easy to Operate: Semi-automatic hydraulic punching machines are relatively easy to operate, and they require minimal training. This means that even operators with limited experience can quickly learn how to use them.

6. Low Maintenance: Hydraulic punching machines are relatively low-maintenance compared to other types of punching machines. This is because they have fewer moving parts, which reduces the risk of breakdowns and the need for repairs.

Hydraulic punching machine price

The price of a hydraulic punching machine can vary greatly depending on several factors such as the machine’s size, capacity, features, and brand. Generally, smaller machines with lower tonnage capacity and fewer features can range from $1,000 to $5,000, while larger machines with higher tonnage capacity and more advanced features can cost upwards of $10,000 to $50,000 or more.

It is important to note that these prices are estimates and may vary depending on the specific requirements of the machine and the supplier or manufacturer. It is recommended to do thorough research and obtain quotes from us before making a purchase.

Precautions for using hydraulic punching machine

1. The drive or commissioning must be prohibited without the protective cover on the drive parts exposed to the press.
2. Before you start driving, ensure the primary fastening screws are secure, the mold is intact, and the operating mechanism, the automated braking system, the clutch, the brakes, and the lubrication system are all in good working order.
3. Installing the mold requires that the slider is at the bottom dead center, that the closed height is accurate, that the economic load is avoided, that the mold is tight and dependable, and that it passes the pressure test.
4. It is forbidden to put your hands, tools, or other objects in a dangerous area while working.
5. Special tools are required to operate small parts. Only use the tool to remove the blank from the mold when it is stuck.
6. Stop feeding immediately and check the source if you hear or see anything unusual. If the rotating components come loose, the steering mechanism breaks, the mold comes loose, or there are other flaws, the machine should be stopped and fixed.
7. To avoid misuse, the hands or feet must permanently be removed after completing a task.
8. Before leaving for the day, turn off the power, take care of the essential cleaning, and take down the desk
